Key Specifications
- Net Power - ISO 9249 36 kW
- Operating Weight 7435 kg
- Maximum Digging Height 7240 mm
High Efficiency, Low Operating Costs | Caterpillar Medium Excavator

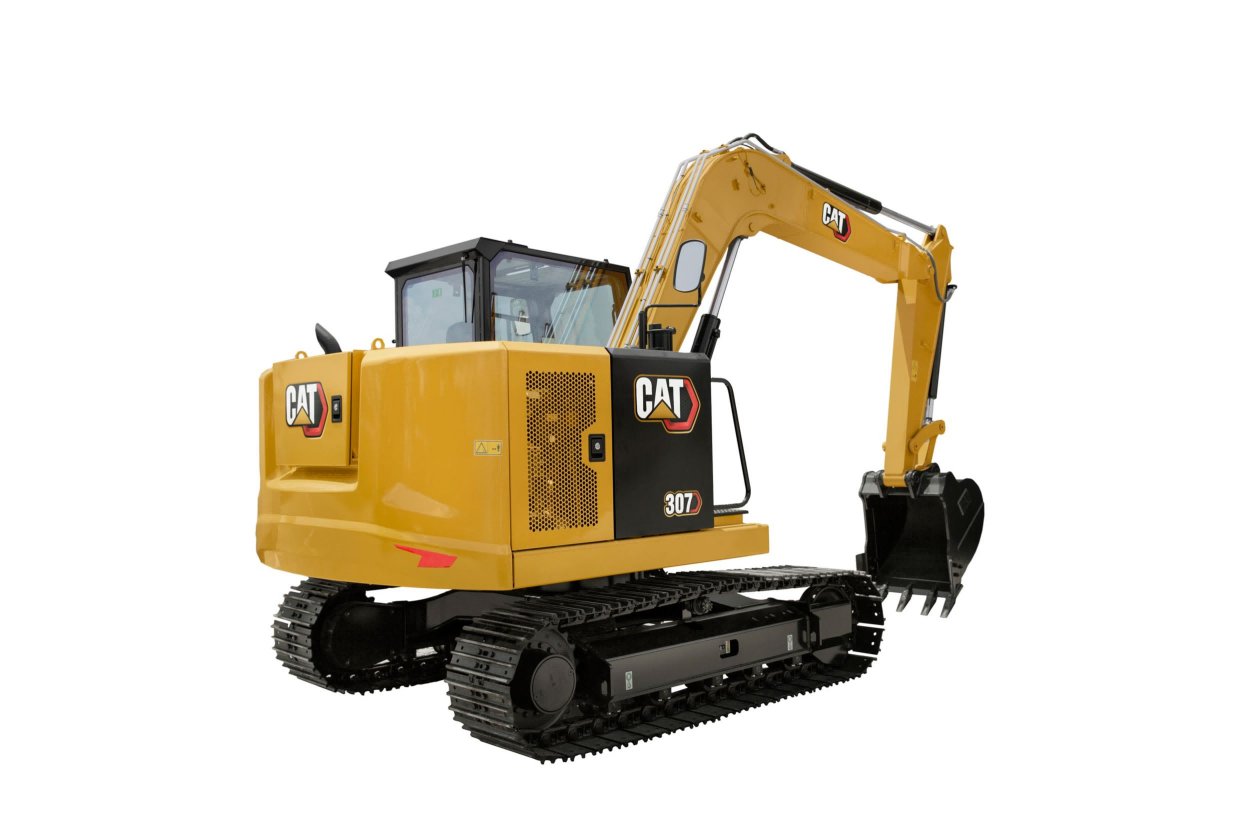

The CAT 307 Hydraulic Excavator is engineered to deliver exceptional performance in construction, mining, and earthmoving applications. Below is a comprehensive breakdown of its technical specifications to help you evaluate its capabilities for your projects.
From engine efficiency to working range, every detail is optimized for productivity and reliability.
| Engine model | Cat C2.4 Turbo |
| Net power | 36 kW |
| Cylinder bore | 87 mm |
| Displacement | 2.4 L |
| Operating Weight | 7435 kg |
| Boom retraction position | 1713 mm |
| Vertical walls | 3490 mm |
| Maximum reach - ground | 6159 mm |
| Overall track length | 2760 mm |
| Dig deep | 4067 mm |
| Maximum digging height | 7240 mm |
| Maximum blade depth | 350 mm |
| Cab height | 2540 mm |
| Tail turning radius | 1750 mm |
| Total transport width | 2200 mm |
| Maximum blade height | 390 mm |
| Maximum reach distance | 6297 mm |
| Total shipment length | 6076 mm |
| Slewing bearing height | 774 mm |
| Track shoe width | 450 mm |
| Maximum unloading clearance | 5195 mm |
| Boom shipping height | 2634 mm |
